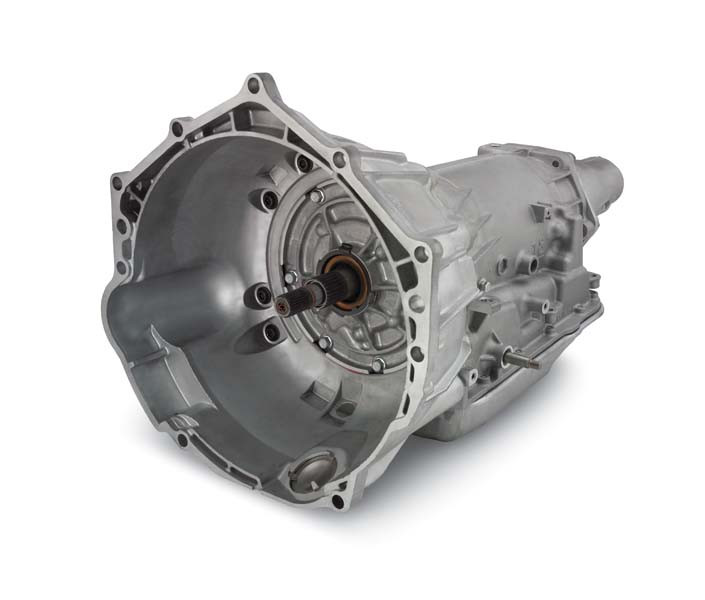

Hydra-Matic 4L65-E Four-Speed Automatic Transmission (LS-Series V-8)
- Similar in design to the 4L60-E
- Electronically controlled four-speed overdrive transmission
- Features five-pinion gearsets, heat-treated stator shaft splines, induction-hardened turbine shaft, seven-plate 3.4 clutch
- Gear ratios: 1st: 3.06, 2nd: 1.62, 3rd: 1.00, 4th: 0.70
- Use SuperMatic™ converter for direct bolt up to Gen I and Gen II engines
- Add up to 430 lbs/ft. torque
- Does not include torque converter. See pages 334-335 for options.
NOTE: Use with electronic controller P/N 19212657 for carbureted
and Ram Jet applications. Use with electronic controller P/N 19302405
with Chevrolet Performance LS fuel injected applications.
