A Living Legend with 427 Classic Cubic Inches
In annals of high-performance engines, the Corvette Z06’s LS7 will be remembered as a benchmark in naturally aspirated power. It will also go down as one of the most popular LS crate engines ever offered, with 505 horsepower and 470 lb-ft of torque.

Within its classic 427-cu-in displacement, engineers extracted Big-Block grunt from its high-revving Small-Block package. It features a unique, big-bore cylinder block that is anchored with a forged crankshaft, featherweight titanium connecting rods, and friction-coated pistons. But it’s the airflow capability of the cavernous, CNC-ported heads that enables its tremendous power. Large-volume, straight-passage intake runners channel air directly through 2.20-inch titanium intake valves.

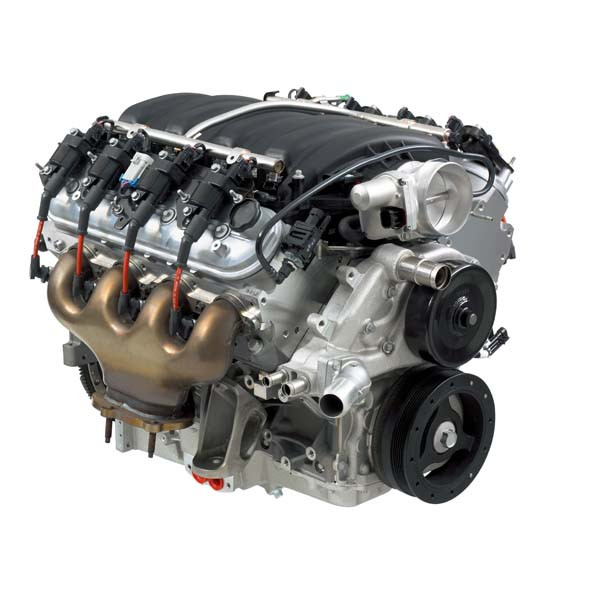

Chevrolet Performance's LS7 7.0L crate engine package includes a production-style engine with the dry sump oil pan. You’ll need to supply the external oil supply and oil lines to the engine, but the rest of the assembly is fully dressed, including the manifold assembly with injectors and electronically controlled throttle body, and log-style exhaust manifolds. Use our LS7 controller kit (P/N 19258553) to get it running in your project vehicle.

LS7 7.0L TECH SPECS
Part Number: 19244098
Engine Type: LS Series Small Block V8
Displacement (cu. in.): 427 (7.0L)
Bore x Stroke (in.): 4.125 x 4.000 (104.8 x 101.6mm)
Block (P/N 12602689): Cast Aluminum with 6-Bolt Steel Main Bearing Caps
Crankshaft (P/N 12641692): Forged Steel
Connecting Rods (P/N 12586258): Forged Titanium
Pistons: Hypereutectic aluminum
Camshaft Type (P/N 12638426): Hydraulic Roller
Camshaft Lift (in.): .591 Intake / .591 Exhaust
Camshaft Duration (@.050 in.): 211° Intake / 230° Exhaust
Cylinder Heads (P/N 12578449): CNC Ported LS7 Style Ports; 70-cc CNC Combustion Chambers
Valve Size (in.): 2.200 Titanium Intake / 1.610 Sodium Filled Exhaust
Compression Ratio: 11.0:1
Rocker Arms: Investment Cast, Roller Trunnion
Rocker Arm Ratio: 1.8:1 (offset, intake only)
Recommended Fuel: 91 Octane
Maximum Recommended rpm: 7000
Reluctor Wheel: 58X
Balanced: Internal

INSTALLATION NOTES

• Assembly does not include any electronics
• Use LS7 Controller Kit P/N 19258553 for engine operation. Kit includes electronic throttle pedal, which is required for throttle input to the ECU
• Comes assembled with 14-inch Corvette Z06 168-tooth manual transmission flywheel
• LS7 is the same size and mounts the same as other LS-Series engines
• Use oil hose adapters P/N 25534412 to adapt to AN -12 fittings
• Intended for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications
• See page 247 for front end accessory drive kit options

LS7 Warranty Detail PDF
