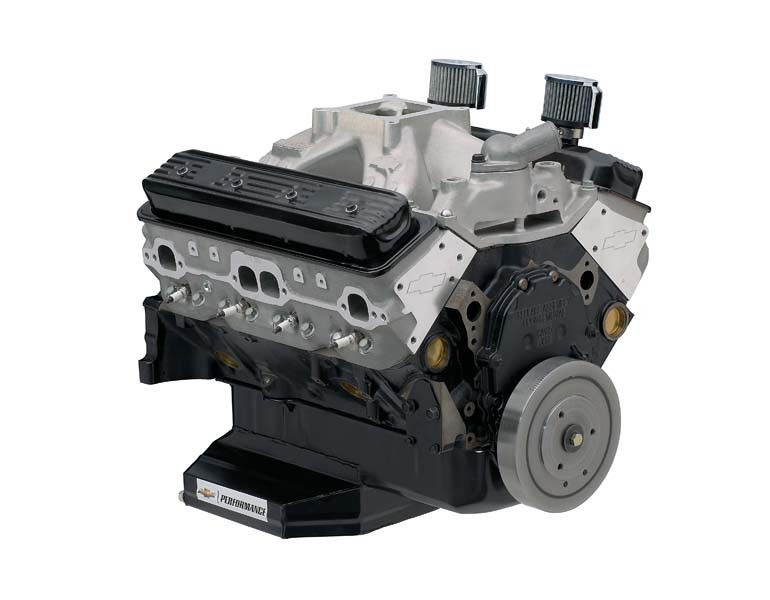

ENGINE ASM,CT400 WITH NEW FASTBURN HEADS

$7,931.01 $6,344.82
(You save $1,586.19)

ENGINE ASM,CT400 WITH NEW FASTBURN HEADS

$7,931.01 $6,344.82
(You save $1,586.19)
SKU:
19318604
Weight:
0.00 LBS
Availability:
Y
Shipping:
Calculated at checkout
Quantity:
Share

Product Description

New Fast Burn Heads with Beehive Springs Add High Rpm Performance and Durability
We’ve added greater high-rpm durability to the CT400 racing engine with new Fast Burn heads that feature beehive-type valve springs and complementing valvetrain components. The beehive springs enable greater high-rpm performance and durability. They allow the engine to rev higher to make the most of every cubic inch of air drawn through it.

This brand-new, factory-sealed racing engine is based on the new ZZ5 street crate engine, but includes a racing-only 8-quart circle track oil pan, with dual kick-out design, along with a valve cover breather kit. The new, lightweight aluminum cylinder head casting – distinguished by new Bowtie logos cast into the ends – is based on the proven Fast Burn design, with large intake runners and 2.00/1.55-inch valves.

The CT400 racing engine has a tough bottom end, anchored by a forged steel crankshaft and hypereutectic pistons installed in a brand-new block with four-bolt mains. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers.

Put a “fast burn” on the competition – with greater high-rpm performance than ever before!

CT400 TECH SPECS19318604-dyno.jpg
Part Number: 19318604
Engine Type: Chevy Small Block V8
Displacement (cu in): 350
Bore x Stroke (in): 4.000 x 3.480|
Block (P/N 10105123): Cast Iron with 4-Bolt main Caps
Crankshaft (P/N 12556307): Forged Steel
Connecting Rods (P/N 10108688): Powdered Metal
Pistons (P/N 10159436): Hypereutectic Aluminum
Camshaft Type (P/N 10185071): Steel Hydraulic Roller
Valve Lift (in): .474 Intake / .510 Exhaust
Camshaft Duration (@.050 in): 208° Intake / 221° Exhaust
Cylinder Heads (P/N 19300955): Fast Burn Aluminum; 62cc Chambers
Valve Size (in): 2.000 Intake / 1.550 Exhaust
Compression Ratio: 9.72:1 Nominal
Rocker Arms (P/N 10089648): Aluminum; Roller Style
Rocker Arm Ratio: 1.5:1
Recommended Fuel: 92 Octane
Ignition Timing: Base 10° BTDC, 32° Total
Maximum Recommended rpm: 5,800
Balanced: External

INSTALLATION NOTES

  • Requires addition of carburetor, starter, ignition, plug wires, water pump, distributor and exhaust system (not included)
  • Requires an externally balanced flywheel (not included). See page 151 for flywheel selection
  • The 8-quart Circle Track oil pan is 7 inches deep at the sump. It will clear most GM rear-steer chassis with stock engine location
  • For Circle Track Racing only – Not intended for street use.

CT400 Engine Specifications PDF
