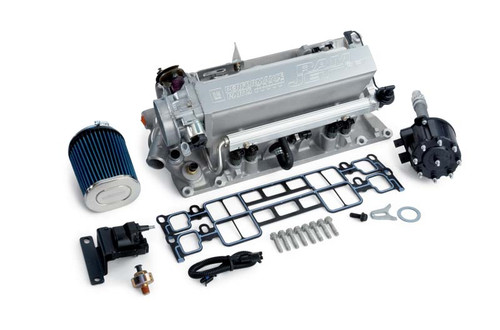

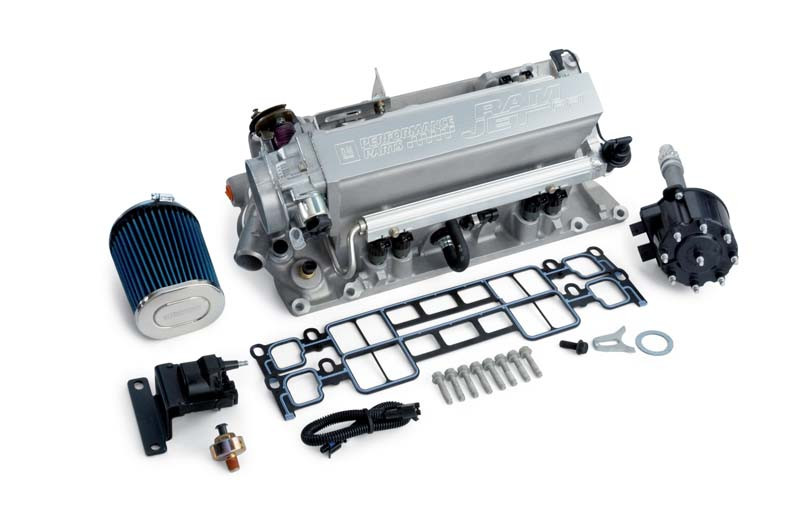

Ram Jet Fuel Injection Manifold Kit (less electronics)

• Retro-fit fuel injection kit will fit V-8 engines using Vortec cylinder heads P/N 12529093, P/N 12558060, P/N 12497186, P/N 12464298, P/N 25534421, or P/N 25534446
• Must be used with an aftermarket ECU and wiring harness with the proper calibration
• The same as used on Ram Jet 350 engine P/N 12499120. (MEFI with ECU and Wire Harness Kit P/N 12499116 is not calibrated for anything other than Ram Jet 350.)

Kit includes the following: (as well as brackets, sensors, bolts, nuts, gaskets, and other small parts):

88959339 Instruction Manual

12489371 Intake Manifold

17096144 Throttle Body
1115498 Coil
12097982 Ignition Wire
1104060 Distributor
12498951 Air Cleaner
12553918 Injector Rail
17124248 8 Fuel Injectors
16249939 MAP Sensor
10456126 Knock Sensor
15326386 Engine Temp Sensor
17123897 Fuel Pressure Regulator
NOTE: It does not include ECU or wiring harness, which must be sourced separately.
