19299069
Corvette Accessory Drive System, A/C Add-on
Components needed to add AC to your LSA-equipped vehicle.

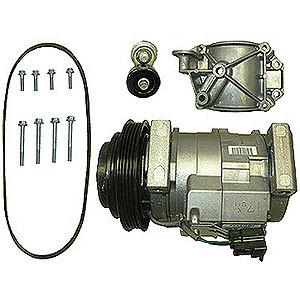

• Kit includes mounting bracket, bolts, belt, AC compressor and instruction sheet
• Intended to be used in conjunction with P/N 19243525 GMPP kit for non-AC applications. Not verified to work with any non-GM FEAD kit
• Includes variable displacement compressor

Part # QTY Description
12556447 1 Stud-10 x 1.5x127MM - 7MM Drive
12569286 1 Bracket-Air Conditioning Compressor
11515768 1 Bolt-10x1.5x40MM- 15MM Drive
89019337 1 Compressor-Air Conditioning
15709703 1 Nut- 10x1.5MM - 15MM Drive
11098341 1 Bolt-10x1.5x110MM- 15MM Drive
12552922 1 Bolt-10x1.5x160MM- 15MM Drive
11516360 1 Bolt-10x1.5x90MM- 15MM Drive
12595289 1 Tensioner-Air Conditioning Compressor Belt
12636225 1 Belt-Air Conditioning Compressor (1040MM - Long)
