19260093

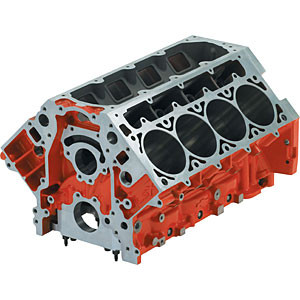

LSX Bowtie Block (Standard Deck)

• 3.880" finished siamese cylinder bores
• 9.260" semi-finished standard deck height (ready to be decked)
• 4.250" maximum stroke (professional engine builders only!)
• Capable of 364- to 482-cubic-inch displacements
• Orange powder-coated finish
• Accepts all LS and LSX Series heads, cranks, cams, etc.
• Approximate finished weight is 225 pounds

LS-Series Blocks
Origin: LSX
Part Number: 19260093
Material: Iron
Deck Height: 9.260
Bore: 3.880"
Main Bolt: 6
Cap Material: 1045 Steel
Crankshaft Jnl Dia.: Std. LS (2.56)
Oiling: Wet/Dry
Rear Main Seal: 1 pc
Max Stroke: 4.25"
Max HP: 1500+
Usage: Street/Pro
