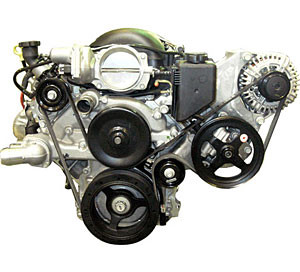

Corvette Accessory Drive System, without A/C

• Fits all Non-LSA and LS9 LS type engines
• Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12620556 is strongly recommended
• Direct bolt-on for LS3 & LS7 engines

NOTE: Use on LS327 iron block engine requires harmonic balancer P/N 12601402
NOTE: Water pump P/N 89018052 NOT Included with kit
NOTE: Will not work with cam-phased engine.

The system includes:
Part# QTY Description
12555222 1 Bracket–Power Steering Fluid Reservoir
12578067 1 Bracket–Generator and Power Steering Pump
25888970 1 Generator
25960709 1 Pump–Power Steering
12568997 1 Pulley–Power Steering Pump
12555693 1 Brace–Power Steering Pump Front
15907878 1 Hose–Power Steering Fluid Reservoir With Clamps
26046502 1 Reservoir–Power Steering Fluid
12569301 1 Tensioner–Drive Belt
12568996 1 Pulley–Belt Idler
12636226 1 Belt–Water Pump/Generator/Power Steering Pump
11515768 2 Bolt-10x1.5x40MM- 15MM Drive
11516714 1 Bolt-10x1.5x110MM- 15MM Drive
12552922 1 Bolt-10x1.5x160MM- 15MM Drive
11516357 3 Bolt-10x1.5x75MM- 15MM Drive
11588745 1 Bolt-10x1.5x65MM- 15MM Drive
24503609 2 Bolt-10x1.5x95MM- Drive
11515758 2 Bolt-8x1.25x30MM- 12MM Drive
10317982 1 Cap-Power Steering Fluid Reservoir
11516697 2 Bolt-8x1.25x85MM- 13MM Drive
