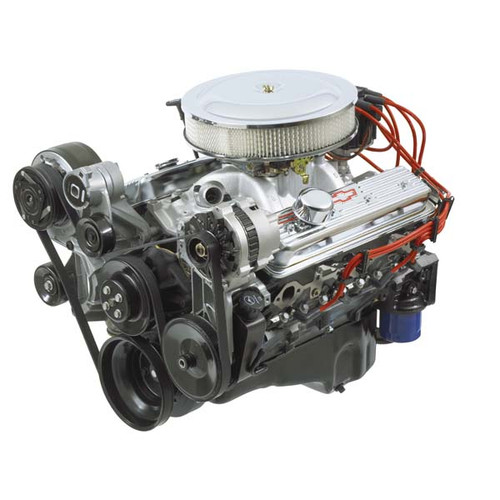

350 HO TURN-KEY - 330HP

From air cleaner to oil pan, this affordable and powerful 350 comes with it all

The classic 350 Small-Block engine has powered countless project cars since its introduction in the 1967 Camaro and it is easy to understand why: it makes great power and torque in a compact, affordable package. That’s exactly what you get in our 350 HO Turn-Key crate engine.

Construction begins with a brand-new engine block with four-bolt mains, which delivers greater strength than that old two-bolt block you were thinking of rebuilding. We also add a set of brand-new Vortec iron heads and a hydraulic flat-tappet camshaft with 0.435/0.460-inch lift specs. It gives the engine the idle quality of a true muscle car without the need
for periodic lash adjustments.

As one of Chevrolet Performance’s Turn-Key engines, the 350 HO Turn Key comes with the intake manifold and distributor installed. It also includes the carburetor, front-accessory kit, starter, fuel pump and spark plug wires. It’s just about everything you need to get this classic 350 up and running in your project vehicle.

350 HO Tech specs

Engine Type: Chevy Small Block V8
Weight: 575
Horse Power: 330
Torque: 380
Displacement (cu in): 350
Bore x Stroke (in): 4.000 x 3.480
Block (P/N 10105123): Cast-iron with 4-bolt Main Caps
Crankshaft (P/N 14088526): Nodular Iron
Connecting Rods (P/N 10108688): Powdered Metal Steel
Pistons (P/N 12514101): Cast Aluminum
Camshaft Type (P/N 24502476): Hydraulic Flat Tappet
Camshaft Lift (in): .435 intake / .460 Exhaust
Camshaft Duration (@.050 in): 212° Intake / 222° Exhaust
Cylinder Heads (P/N 12558060): Vortec Iron; 64cc Chambers
Valve Size (in): 1.940 intake / 1.500 Exhaust
Compression Ratio: 9.1 Nominal
Rocker Arms (P/N 10089648): Stamped Steel
Rocker Arm Ratio: 1.5:1
Water Pump (P/N 88894341): Cast Iron, long Style
Flexplate (P/N 14088765): 12.750"
Recommended Fuel: 92 Octane
Ignition Timing: Base 10° BTDC, 32° Total
Maximum Recommended rpm: 5,500
Balanced: External

INSTALLATION NOTES

• Comes with externally balanced flexplate for automatic transmission; requires externally balanced flywheel for manual transmission. See chart on page 151
• Has right-side oil dipstick
• Requires fuel line from fuel pump to carburetor
• Fuel pump pressure is pre-set; fuel pressure regulator not required
• Some assembly and minor engine tuning required
• Designed for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications
