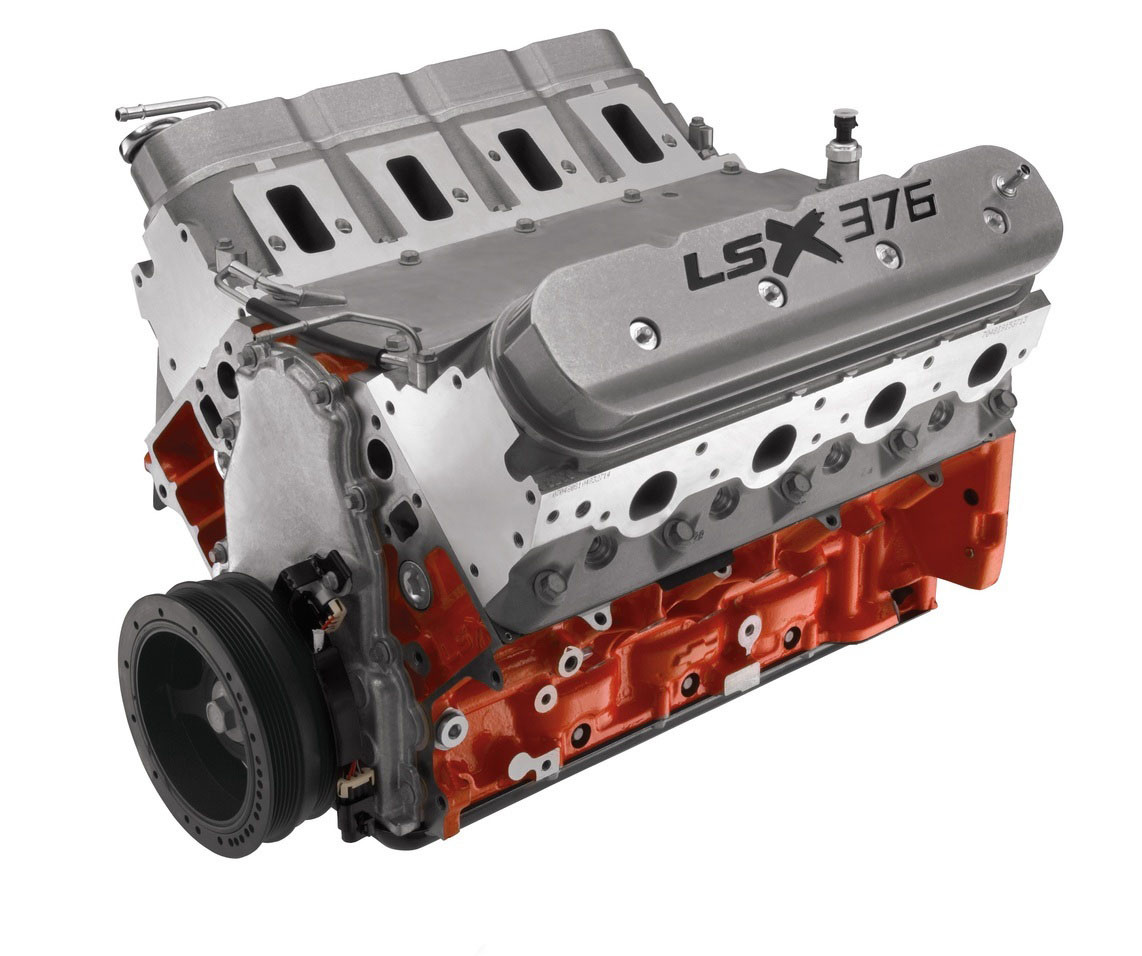

ENGINE ASM, LSX376 LONG BLOCK B8
Product Description
An Affordable Foundation for Forced Induction!
Boost on a budget! That’s what you get with the LSX376-B8. Chevrolet Performance takes the economical LSX Bowtie standard-deck block, adds blower-friendly 9.0:1 forged pistons and combines them with the LS3’s high-flow, rectangular-port heads to create an affordable foundation for supercharged and turbocharged combinations.
The LSX376-B8 is designed for mild-boost applications, up to about 8 pounds. That’s suitable for most supercharger and turbo kits that are designed to be used with production-based applications.
We deliver the LSX376-B8 without an intake manifold and other accessories to keep the price lower and enable the installer to tailor the induction system to suit the blower or turbo system. Put this great engine in a vehicle originally equipped with an LS engine to give it a stronger bottom end for forced induction, or drop it into a street rod or classic
muscle car body for a modern update.
*Horsepower and torque ratings were derived by GM Engineering using a normally aspirated LSX376 with LS3 EFI. Your power numbers may vary, based on induction system and componentry.
lsx376-B8 TECH SPECS
Part Number: 19332312
Engine Type: LSX-Series Gen IV Small Block V8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92 mm)
Block (P/N 19260832): LSX Cast Iron with 6-Bolt, Cross Bolted Main Caps
Crankshaft (P/N 12597569): Nodular Iron
Connecting Rods (P/N 12607475): Powdered Metal
Pistons (P/N 19244016): Forged Aluminum
Camshaft Type (P/N 12603844): Hydraulic Roller
Valve Lift (in): 0.551" intake / 0.522" Exhaust
Camshaft Duration (@0.050 in): 204° Intake / 211° Exhaust
Cylinder Heads (P/N 12615879): LS3 Rectangular Port; with “As Cast” 68cc Chambers
Valve Size (in): 2.160 Intake / 1.590 Exhaust
Compression ratio: 9:1
Rocker Arms (P/N 12569167 int): Investment Cast, Roll Trunnion
Rocker Arms (P/N 10214664 exh): Investment Cast, Roll Trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: 87 Octane
Maximum Recommended RPM: 6,600
Reluctor Wheel: 58X
Balanced: Internal
INSTALLATION NOTES
- Assembly does not include any electronics
- Intended for pre-1976 s
treet vehicles or any off-road vehicle - Not intended for marine applications
- Requires LSX Ignition Controller P/N 19171130 for carbureted applications
- Standard LS 6-bolt crank flange
- Assembly shipped without intake manifold or oil pan (dust shield installed for shipment)
- Recommended max boost - 8 PSI
