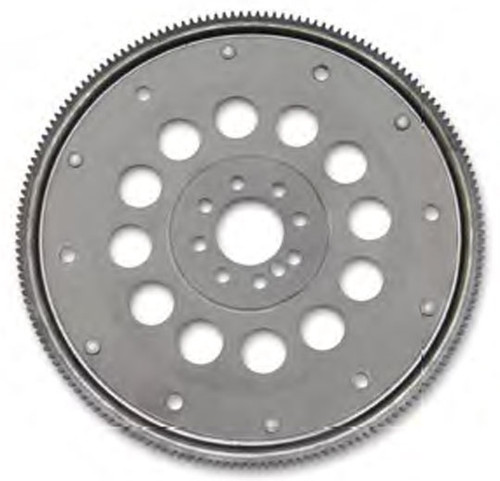

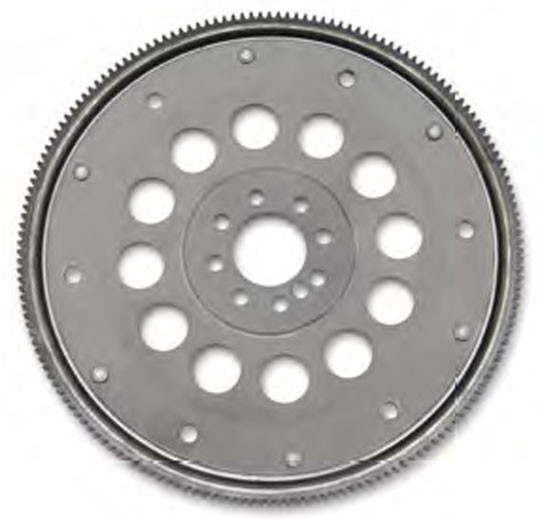

LS Engine Flexplates
Part Number: 19125691
Year of Engine: 2009 - up
Outside Diameter: 14”
Crank Flange Bolt Pattern: 8-Bolt
Converter Bolt Pattern: 11.5” (291.1mm), 11.062” (281mm)
Starter Ring Gear Teeth: 168
Technical Notes: Modified LSA 12636325 Flexplate (see above) for use in flywheel kit 19125597
