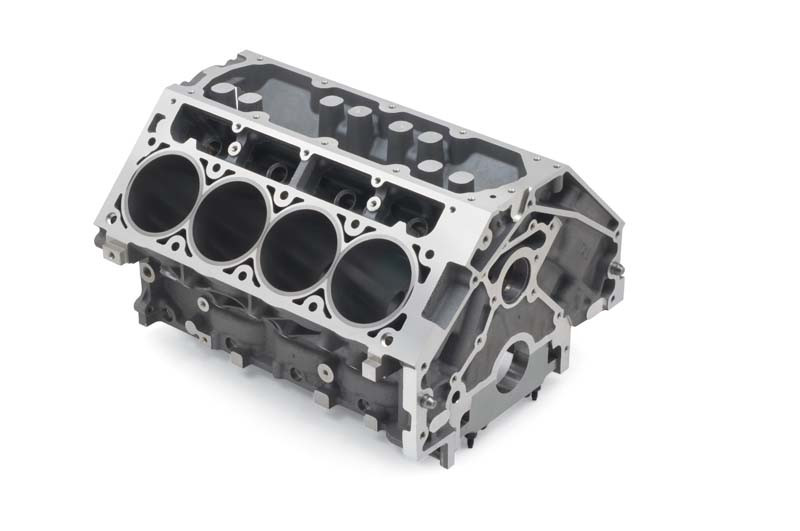

19213580 - LS7 7.0L Corvette Bare Block

• Direct replacement for 2006-2014 7.0L LS7 engine
• Production 319-T5 aluminum block with pressed-in iron sleeves
• Production oiling system
• 6-bolt dowel located steel main bearing caps
• 9.240" deck height
• For use with any LS or LSX series head
• 4.125" finished bore (104.78mm), deck plate honed
• Siamese cylinder bores for large bore size
• No provision for Active Fuel Management
• Based on C5R block development
• Tested to over 500 horsepower!

Parts required to complete your LS7 Block

12570471 1 Valley Cover
11588949 6 Plug
12589016 1 Camshaft Retainer
11611351 1 Plug
11610259 1 Plug, Cylinder Head
11515756 5 M8 x 1.25 Flanged Hex Head Bolt
12570326 4 Dowel, Cylinder Head Locating
12639250 1 Rear Cover Assembly
12573460 1 Oil Plug
12618422 1 Windage Tray
09427693 4 Plug
01453658 2 Dowel, Bellhousing Locating
12561663 1 Plug
12616646 1 Oil Pressure Sensor
12585546 1 Crankshaft Position Sensor
12598293 1 Cover
12585673 1 Seal - Front Cover
12633904 1 Gasket - Front Cover
11515758 8 Bolt
12591720 1 Sensor
11588712 1 Bolt
