LEGENDARY PEDIGREE MEETS ADVANCED TECHNOLOGY IN A FACTORY-ASSEMBLED POWERHOUSE PERFECT FOR YOUR PROJECT CAR

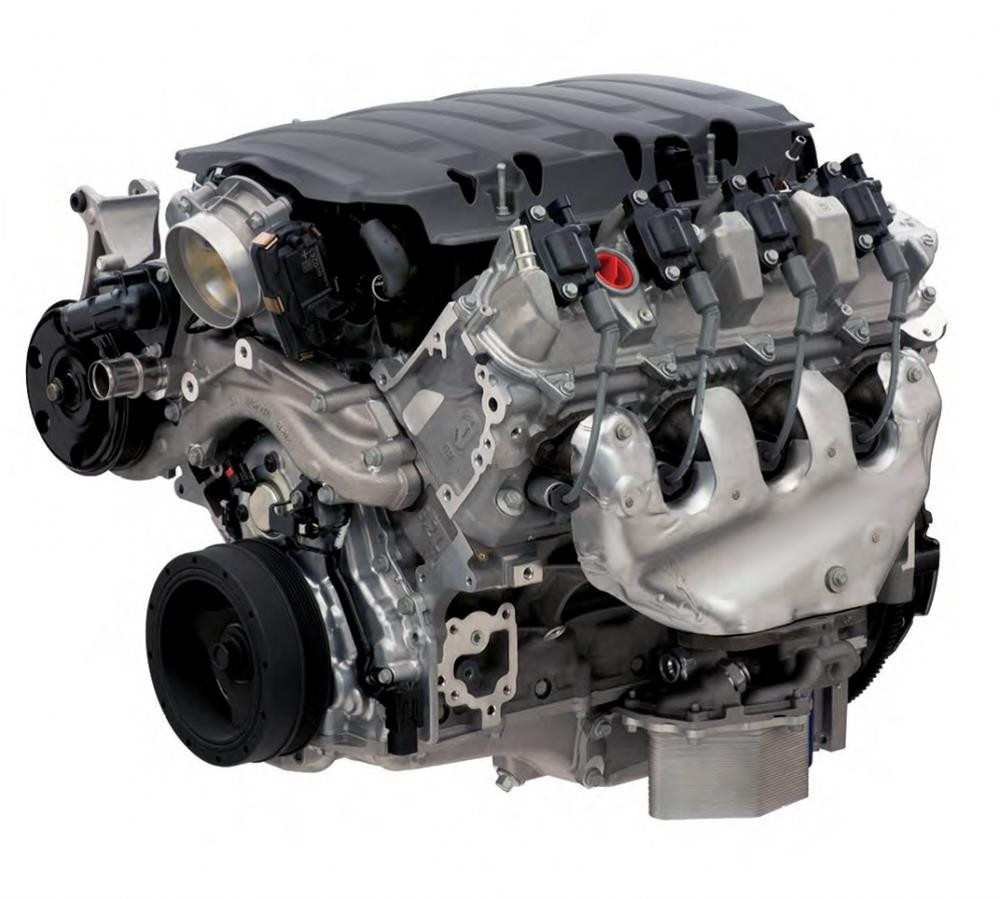

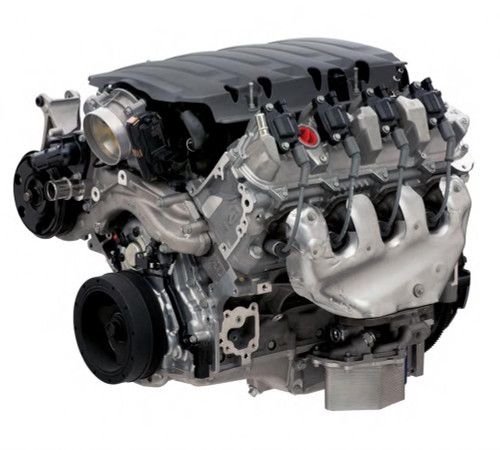

Chevrolet Performance is proud to offer the all-new LT1 crate engine. Introduced on the seventh-generation Corvette Stingray, the LT1 6.2L opened the next chapter in the long, historic legacy of the small-block engine — and it gives your project vehicle a high-tech transplant with an outstanding balance of performance and efficiency.

The LT1 is architecturally similar to the LS family of small-block engines, but with a unique block casting, cylinder head design, oiling system, and more. It also combines advanced technologies including Direct Injection and continuously Variable Valve Timing to support an advanced combustion system.

Our LT1 crate engine is rated at 460 horsepower and 465 lb-ft of torque, and it is offered with a wet-sump (P/N 19328728) or dry-sump (P/N 19329997) oiling system. A controller specially designed for retro-fit application using an automatic transmission is available.

LT1 TECH SPECS

• Part Number: 19328728 or 19329997
• Camshaft Duration (@.050 in.): 200° intake / 212° exhaust
• Engine Type: Direct injection spark ignition Gen V Small-Block V8
• Displacement (cu. in.): 376 (6.2L)
• Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92mm)
• Block (P/N 12619171): Cast aluminum with 6-bolt nodular iron main bearing caps
• Crankshaft: Forged steel
• Connecting Rods: Forged powdered metal
• Pistons (P/N 12662802): Eutetic
• Camshaft Type (P/N 12629512): Billet steel roller
• Camshaft Lift (in.): .310 intake/.294 exhaust
• Valve Lift (in): .561 intake/ .531° exhaust
• Cylinder Heads (P/N 12620544): Aluminum, rectangular port D/I
• Balanced: Internal
• Valve Size (in.): 2.13 intake / 1.59 exhaust
• Compression Ratio: 11.5:1
• Rocker Arms (P/N 12619829 int): Investment-cast, roller trunnion
• Rocker Arms (P/N 12619829 exh):  Investment-cast, roller trunnion
• Rocker Arm Ratio: 1.81:1
• Recommended Fuel: Premium
• Maximum Recommended rpm: 6600
• Reluctor Wheel: 58X
