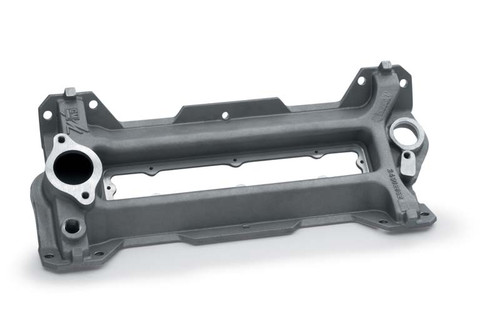

24502654 Valley Plate Assembly

• Universal aluminum valley plate is designed for use with 18° cylinder heads
• Can be used with dedicated 2-piece manifold spiders, existing 1-piece intake manifolds which have been properly machined for use as a dry manifold, or fabricated manifold designs
• Valley plate assembly consists of the valley plate P/N 24502652, the inspection cover P/N 24502651, O-ring material and eight retaining bolts
• Valley plate has cast-in integral passages to equalize coolant flow from the front and the rear of the cylinder heads
• Fits heads dated June 1996 and later
