OUR MOST POPULAR BIG-BLOCK CRATE ENGINE FOR THE STREET AND STRIP

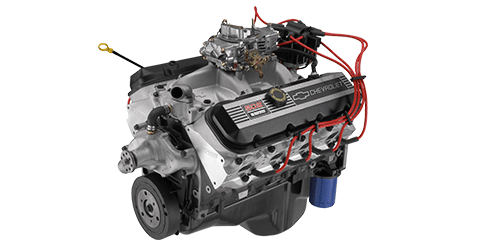

Chevrolet Performance’s ZZ502/502 is one of the industry’s benchmark crate engines, offering excellent value with a proven combination of performance that is suitable for the street or strip. With 508 horsepower and 580 lb-ft of torque, it demands your full attention and a chassis that is strong enough to harness its frame-straining twisting power.

All ZZ502 crate engines are manufactured with GM’s updated cylinder block casting that is stronger and better supports high-performance applications. A forged crankshaft, along with forged rods and pistons, anchors the bottom end, while our popular oval-port aluminum heads offer excellent airflow characteristics.

Our ZZ505/502 Deluxe package comes complete from the oil pan to the carburetor, including an HEI distributor, plug wires, starter, water pump, balancer, and an aluminum intake topped with a Holley 870-cfm four-barrel.

We’ve taken care of the engine’s details. You need to make sure your car can handle the ZZ502/502!

ZZ502/502 DELUXE TECH SPECS

• Part Number: 19419003
• Engine Type: Chevy Big-Block V-8
• Displacement (cu. in.): 502
• Bore x Stroke (in.): 4.470 x 4.000
• Block (P/N 19170540): Cast-iron with four-bolt main caps
• Crankshaft (P/N 10183723): Forged steel
• Connecting Rods (P/N 19170198): Forged steel, shot peened
• Pistons (P/N 12533507): Forged aluminum
• Camshaft Type (P/N 12366543): Hydraulic roller
• Camshaft Lift (in.): .527 intake / .544 exhaust
• Camshaft Duration (@.050 in.): 224° intake / 234° exhaust
• Cylinder Heads (P/N 12363390): Aluminum oval port; 110-cc chambers
• Valve Size (in.): 2.250 intake / 1.880 exhaust; stainless steel
• Compression Ratio: 9.6:1
• Rocker Arms (P/N 12368082): Stamped steel
• Rocker Arm Ratio: 1.7:1
• Distributor (P/N 93440806): HEI type
• Carburetor (P/N 19170094): 870-cfm
• Water Pump (P/N 19168602): Aluminum, short-style
• Spark Plugs and Wires: Included
• Starter (P/N 12606096): Included
• Flexplate (P/N 10185034): 14"
• Recommended Fuel: Premium
• Ignition Timing: 32° @4,000 rpm
• Maximum Recommended rpm: 5800
• Balanced: External
