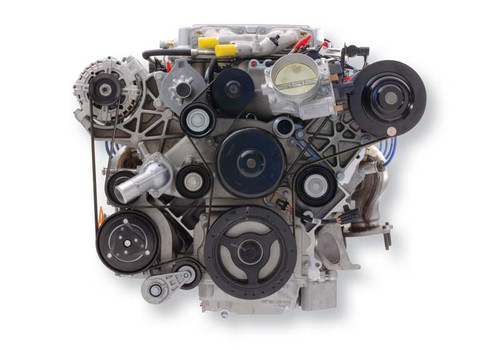

19243524 - LS9 Accessory Drive System w/ac

The Chevrolet Performance FEAD kit for the powerful LS9 is complete, as used in the ZR-1 Corvette.

• It consists of all brackets, bolts, tensioners, pulleys, belts, alternator, P/S pump, idlers, and AC brackets, compressor and instruction sheets

The system includes:

15857665 1 Pump Asm–P/S
11588733 2 Bolt–Hvy Hx Acorn Flg Hd
12625875 1 Bracket Asm–P/S Pump
11518634 6 Bolt–Hvy Hx Acorn Flg Hd
15285644 1 Reservoir Asm–P/S Fluid
12598653 1 Pulley Asm–Belt Idler
11518631 1 Bolt–Drv Belt Tensr
12598654 1 Pulley Asm–Belt Idler
11588743 1 Bolt–Hvy Hx Acorn Flg Hd
12623061 1 Tensioner Asm–Drv Belt
11515767 5 Bolt–Trans Br Brkt
12602288 1 Bracket–AC Cmpr
12556447 1 Stud–Special M10 X 1.5 X 127
11571051 3 Bolt–Hex Washer Hd
12623062 1 Tensioner Asm–AC Cmpr Belt
12568996 1 Pulley Asm–Belt Idler
89019339 1 Compressor Asm–AC
11514597 1 Nut–Gen
12552922 1 Bolt/Screw–AC Cmpr
11518637 2 Bolt–Hvy Hx Acorn Flg Hd
11588754 1 Bolt–Hvy Hex Acorn Flg Hd
25888947 1 Generator Asm
11518630 2 Bolt–Hvy Hx Acorn Flg Hd
12602289 1 Bracket–Gen & Drv Belt Tensr
12637321 1 Belt–Spchg & w/Pmp & P/S Pump
12627522 1 Belt–AC Cmpr
19243526 1 Instruction–FEAD Kit

Note : This kit includes the generator bracket and bolts that are already attached to a Chevrolet Performance LS9 Crate Engine. This bracket must be bolted on the cylinder head prior to installing the water pump. If you do not have a Chevrolet Performance LS9 Crate Engine, you will also need to purchase separately the LS9 water pump kit (12622036), the LS9 lifter valley cover (12605719) and LS9 coolant air bleeds (12606242 and 1260 6243) to use this FEAD kit. If you have a Chevrolet Performance LS9 Crate Engine, you do not need any of these additional parts.
